namespace Oop_instr_test
{
    public partial class Form1 : Form
    {
        public Form1()
        {
            InitializeComponent();
        }
        System.Drawing.Graphics desen;
        osciloscop os1;
        voltm v1;
        termo t1;
        ser s1;
        histo h1;
        turom tr1;
        barom b1;
        manom m1;
        anemom a1;

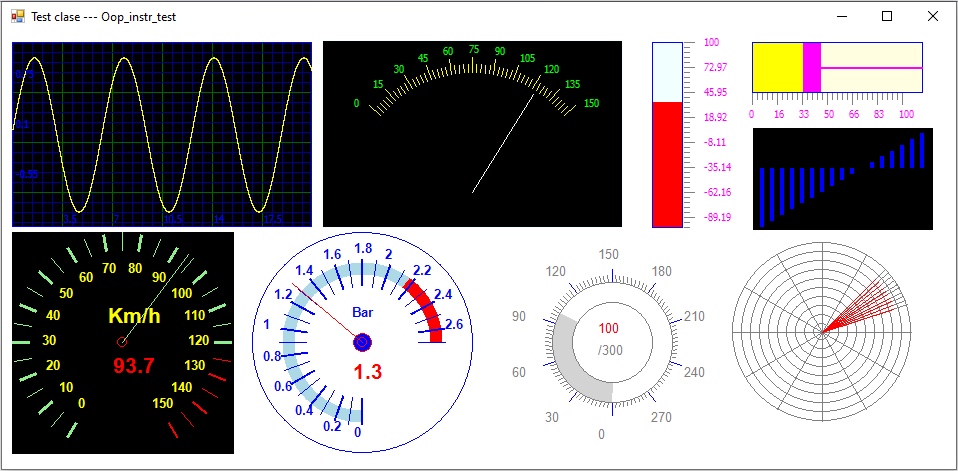

        private void Form1_Paint(object sender, PaintEventArgs e)
        {
            desen = this.CreateGraphics();

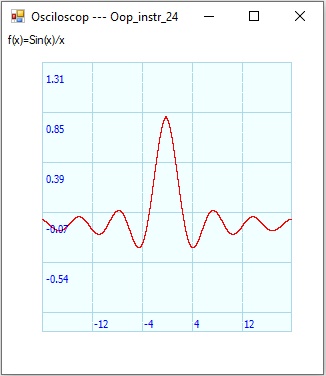

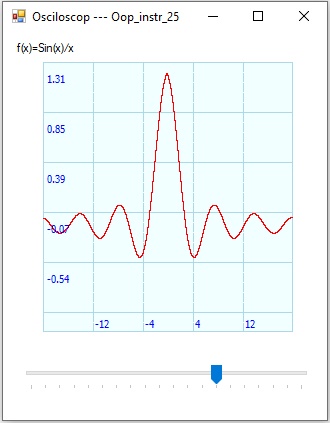

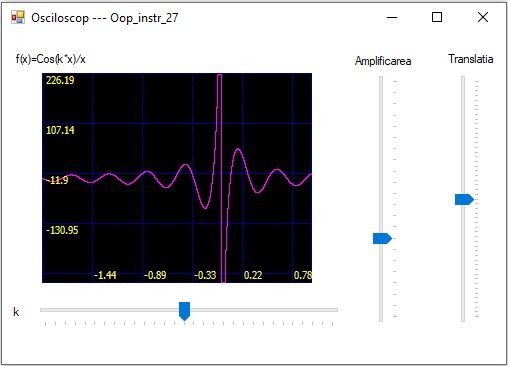

            // Osciloscop

            os1 = new osciloscop(desen, 10, 10, 300, 185, 1.2, -1.2, Color.Black, Color.DarkGreen, Color.DarkBlue, Color.Blue);
            os1.display();
            double[] valori1 = new double[300];
            double alfa = 0, pas = 0.07;
            for (int i = 0; i < 300; i++)
            {
                alfa += pas;
                valori1[i] = Math.Sin(alfa);
            }
            os1.sterg();
            os1.auto_sx(pas * 300, 0);
            os1.setval(valori1, 300, Color.Yellow);
            os1.display();

            // Voltmetru

            v1 = new voltm(desen, 320, 10, 300, 150, Color.Black);
            v1.desen_voltm(Color.Yellow, Color.Lime);
            v1.setval(123, Color.Azure);

            //Termometru

            t1 = new termo(desen, 650, 10, 30, 185, -100, 100);
            t1.desenez(Color.Blue, Color.Magenta);
            t1.setval(35, Color.Red, Color.Azure);

            // Seringa

            s1 = new ser(desen, 750, 10, 150, 50, 20, 0, 100);
            s1.desenez(Color.Blue, Color.Gray, Color.Magenta);
            s1.setval(33, Color.Yellow, Color.Magenta, Color.LightYellow);

            // Histograma
            h1 = new histo(desen, 750, 95, 17, 100, -10, 7);
            double[] valori = new double[17];
            for (int i = 0; i < 17; i++)
            {
                valori[i] = (i-10) ;
            }
            h1.setval(valori, Color.Blue, Color.Black);


            // Turometru

            tr1 = new turom(desen, 10, 200, 220, 120, 300, 10, 0, 150, "Km/h");
            tr1.setval(93.7);

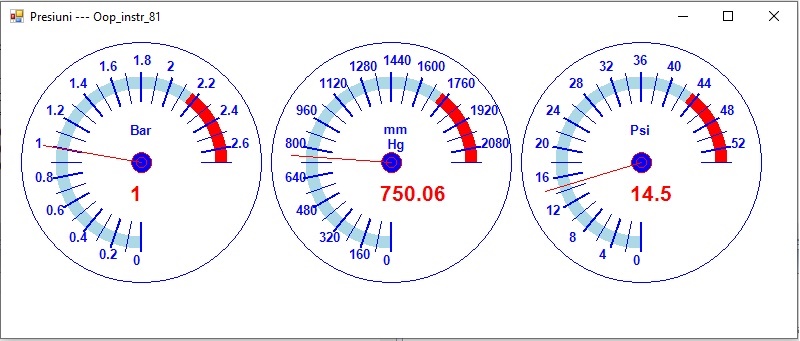

            //Barometru

            b1 = new barom(desen, 250, 200, 220, 90, 270, 10, 0, 2.7, "Bar");
            b1.setval(1.3);

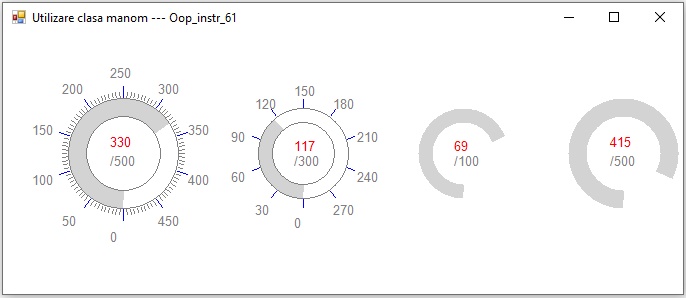

            // Manometru

            m1 = new manom(desen, 500, 200, true, 220, 300);
            m1.setval(100);

            // Anemometru

            a1 = new anemom(desen, 730, 210, 180);
            a1.setval(75, 45);
        }
    }
    public class osciloscop...
    public class voltm...
    public class termo...
    public class ser...
    public class histo...
    public class turom...
    public class barom...
    public class manom...
    public class anemom...
}
